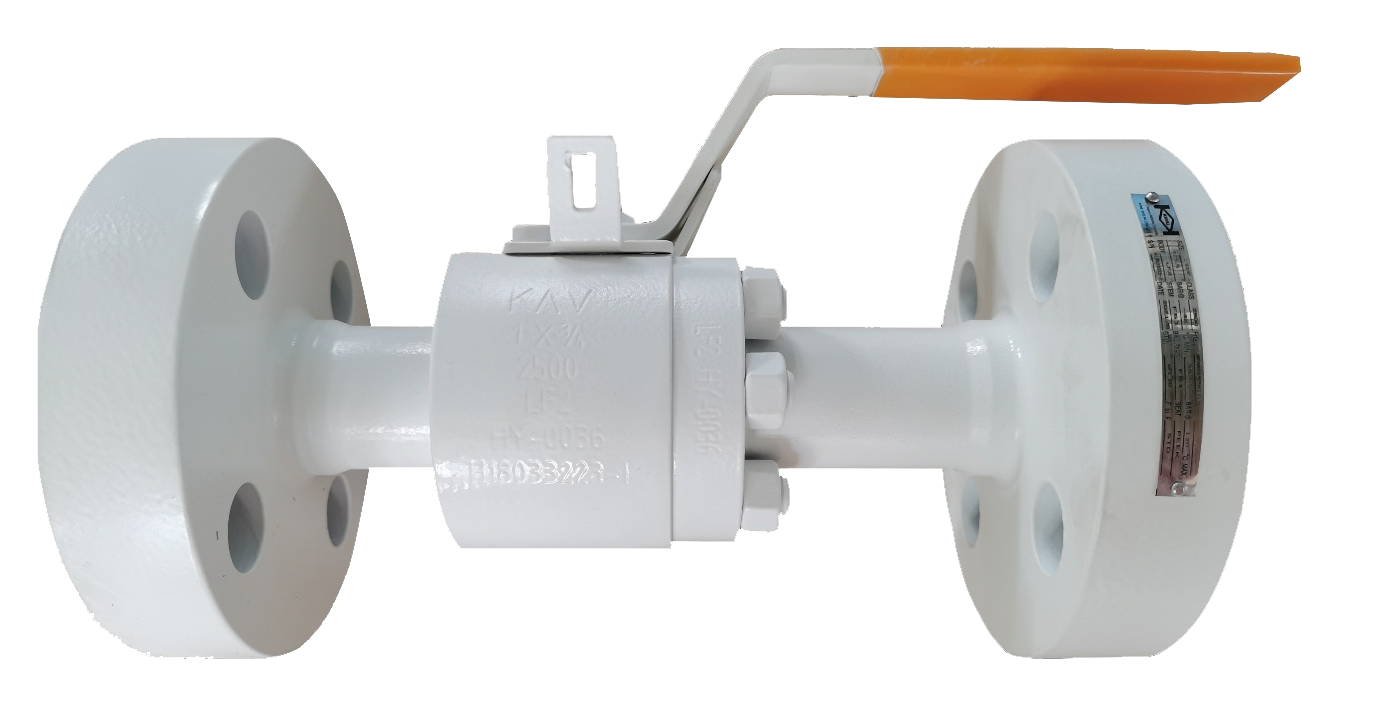

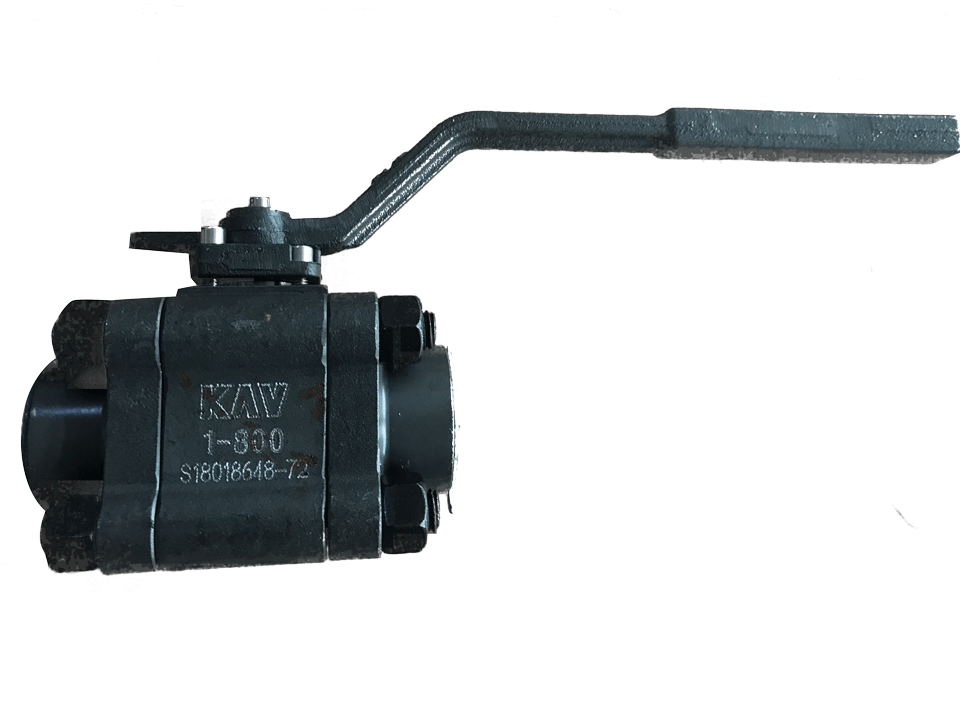

FLOATING BALL VALVES
Kaval floating ball valves feature a straight-through flow design that ensures minimal pressure drop and turbulence, while providing reliable, bubble-tight shutoff. Flow is controlled by a 90-degree rotation of the floating ball.
We offer a full range of ball valves engineered to meet the demanding requirements of the oil & gas, chemical, petrochemical, power, and related industries.
KEY FLOATING BALL VALVE FEATURES
- API608 standard and applicable international specifications as required.
- Full port or reduced port design.
- RF, RTJ, NPT, SW or BW end connections.
- Soft seat or metal seat design.
- Fire-safe tested.
- Blow-out proof stem.
- Anti-static Electricity.
- Locking Device.
- Low operating torque for ease of operation and reduced actuator cost.
- Automatic cavity pressure relief.
- Positive Flow Stem Indicator.
- ISO 5211 mounting pad.
- Extended stem for Cryogenic service.
- Non-standard valves designed according to customer specifications.
FLOATING BALL VALVES MADE OF BEST QUALITY MATERIALS
- Carbon Steel
- Stainless Steel
- High-temperature alloy steel
- Duplex Stainless Steel
- Super Duplex Stainless Steel
- Ni Alloy
Construction:
Side Entry (2pc/3pcs Bolted, 3pcs thread, fully weld) / Top Entry
Operation:
Manual / Electric / Pneumatic / Hydraulic
FLOATING BALL VALVES SIZE & PRODUCT RATINGS
| Size: | Rating: |
|---|---|
| 1/2" to 10" | 150lb |
| 1/2" to 6" | 300lb |
| 1/2" to 4" | 600lb |
| 1/2" to 2" | 900lb |
| 1/2" to 2" | 1500lb |
| 1/2" to 2" | 2500lb |
